    • ▶ Over 50㎛ : Less than 10inds/㎥
    • ▶ 10-50㎛ : Less than 10inds/㎖
    • ▶ Bacteria
      > Escherichia Coli : Less than 250cfu/100㎖
      > Intestinal Enterococci : Less than 100cfu/100㎖
      > Vibrio Cholerea : Less than 1cfu/100㎖
    • 1

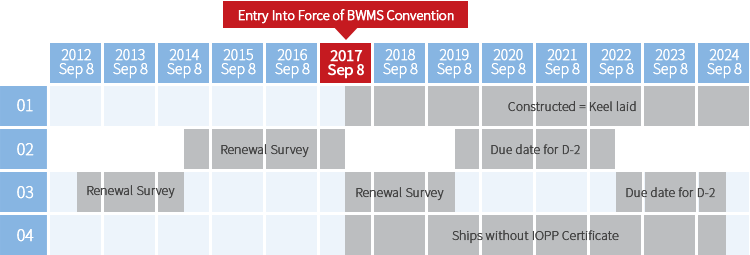

    Ships constructed on or after 8 September 2017 shall comply with the D-2 standard for ships delivery (Constructed = Keel Laid).
    2
    In the case where a previous IOPP renewal survey had been completed between 8 September 2014 and 7 September 2017, the ships shall comply with the D-2 standard by the first IOPP renewal survey after entry into the force of the Convention.
    3
    In the case where a previous IOPP renewal survey had been completed between 8 September 2012 and 7 September 2014, the ships shall comply with the D-2 standard by the second IOPP renewal survey after entry into the force of the Convention.
    4
    Ships not subject to the IOPP renewal survey (normally less than 400GT) shall comply with the D-2 standard by 8 September 2024.

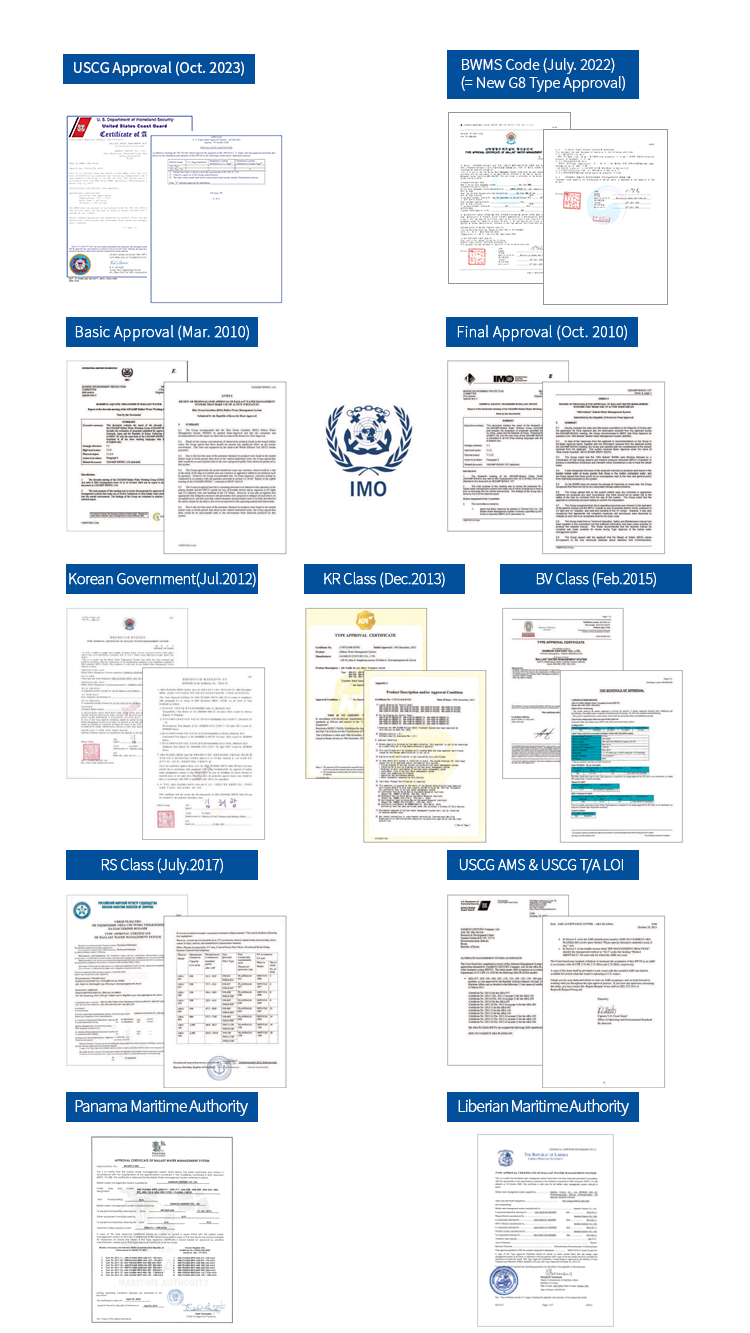

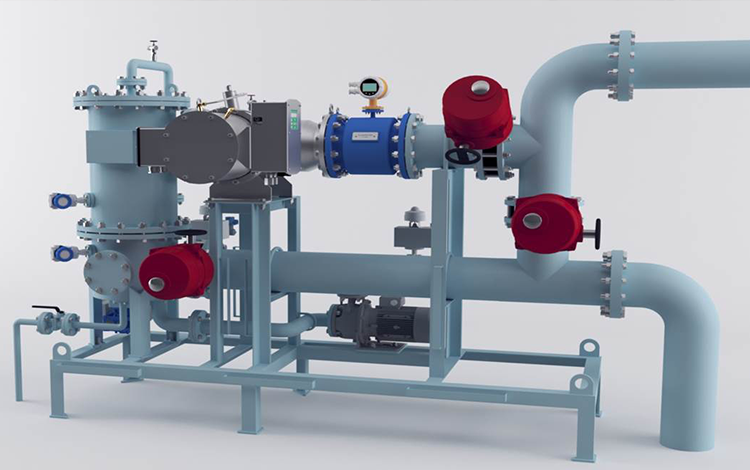

  • ARA Plus+ BWMS was developed by SAMKUN CENTURY and ARA Plus+ BWMS approved by BWMS Code
    (=New G8 Type Approval) in 2022 and / also USCG Type Approval in 2023
    • Filtration
    It removes large particles and organisms larger than 50㎛ in ballast water. It automatically removes any substances in filter cartridges by housing an internal pressure increase.It is highly accurate and reliable.
    ● Specification
    > Mesh size : 50 µm
    > Design pressure : 6.6 bar
    > Power Source : 3-Phase, AC380/440V 50/60Hz
    MPUV
    It has a high performance in disinfecting bacteria and viruses. There are no formations of residual toxins or harmful substances. Uses a wavelength of UV-C(200~280nm) to sterilize microorganisms.
    ● Specification
    > UV sensor : 0-500mW/cm2
    > Temperature sensor : PT-100
    > UV chamber : STS 316L
    Control Panel
    Users conveniently operate “ARA PLUS+ BWMS” by touchscreen. The status of each module and any alarm messages are easily monitored in realtime. The Control panel consists of four parts; monitoring & operating, main switch, emergency stop switch and cabinet ventilators.
    ● Specification
    > Control panel type : PLC Type (AUTO)
    > Power Source : AC230V, 1 Phase & DC 24V
    > Frequency : 50/60Hz
    > Color : Munsell no. 7.5BG 7/2
    • No Model Capacity
    1 AP-150
    AP-150-Ex    		 150m3/h
    2 AP-250
    AP-250-Ex    		 250m3/h
    3 AP-400
    AP-400-Ex    		 400m3/h
    4 AP-650
    AP-650-Ex    		 650m3/h
    5 AP-800
    AP-800-Ex    		 800m3/h
    6 AP-1300
    AP-1300-Ex    		 1,300m3/h
    * Ex : Explosion Proof Type
